Halo
NEW
Halo - Image 2
Halo - Image 3
Halo - Image 4
Halo - Image 5

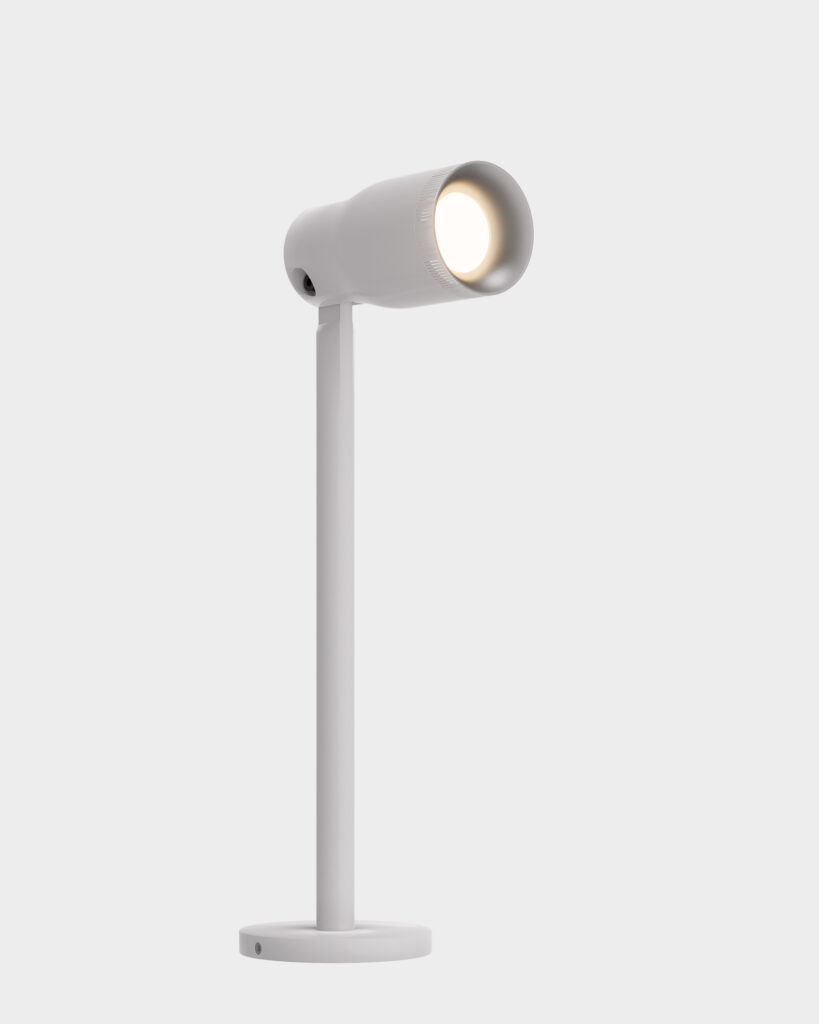

Halo

H50-3595
Garden Luminaire
Material Die Cast Aluminum
Diffuser Clear Glass

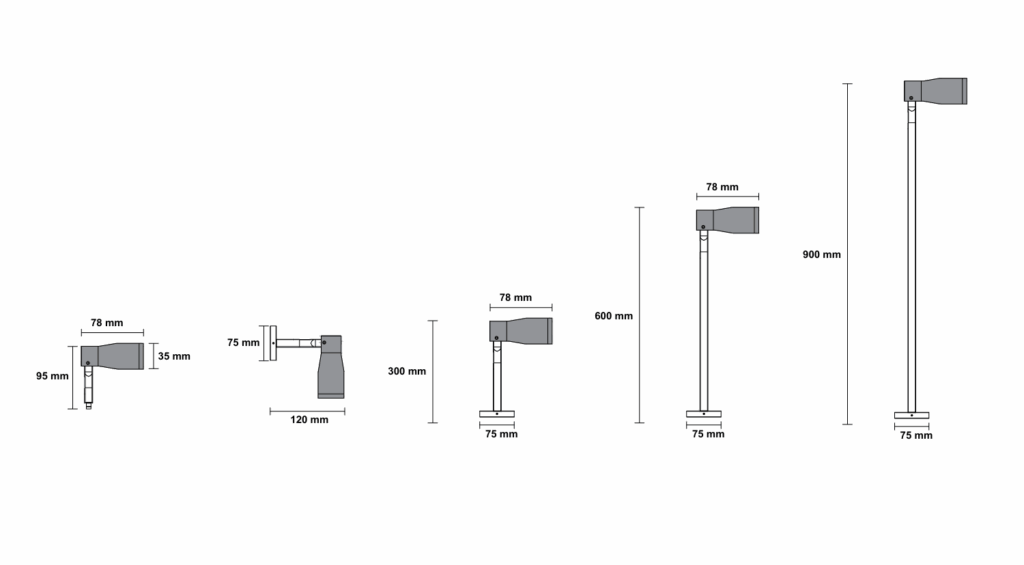

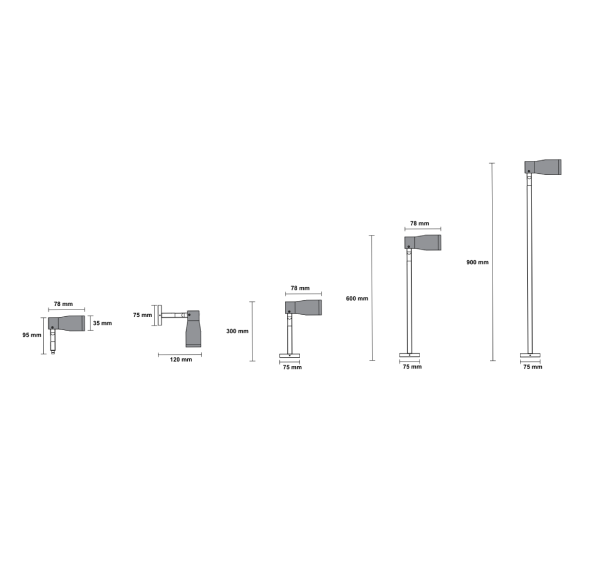

Width Dia: 1-3/8 in (35 mm)
Height 3-3/4 in (95 mm)
Depth 3-1/16 in (78 mm)
Weight 2.43 lbs. (1.10 Kg)
Finishes White (RAL9003)
Black (RAL9011)
Gray Silver (RAL9007)
Basalt Gray (RAL7012)
Moss Green (RAL6005)
Corten Brown (RAL8028)
Dark Brown (RAL8016)
Electrical Information
Type of lamp LED
Power 3W
Input Voltage DC 24V | AC 120V–277V
Input Frequency 50 | 60 Hz
Controllable On/Off | Phase | DALI | DMX
Lighting Technology
Color Temperature (CCT) 2700K | 3000K | 4000K | 6000K
Luminous Flux 357lm @ 3000K
Color Rendering Index (CRI) >80
Light Distribution Symmetric
Beam Angles 6° | 15° | 30° | 60°
Adjustability Tiltable up to -45° to 70°
Safety
Weather Resistant Yes (IP66)
Impact resistance Yes (IK06)
Ambient temperature 131°F (55 °C)
Accessories
Pole 11-13/16 in (300 mm)
23-5/8 in (600 mm)
35-7/16 in (900 mm)
Base Plate Dia: 2-15/16 in (75 mm)



Category:
Material SL Light
Diffuser Black
Width Dia: 1-3/8 in (35 mm)
Height 3-3/4 in (95 mm)
Depth 3-1/16 in (78 mm
Weight 2.43 lbs. (1.10 Kg)
Finishes
White (RAL9003)
Black (RAL9011)
Gray Silver (RAL9007)
Basalt Gray (RAL7012)
Moss Green (RAL6005)
Corten Brown (RAL8028)
Dark Brown (RAL8016)
Type of lamp LED
Power 3W
Input Voltage DC 24V I AC 120V-277V
Input Frequency 50 I 60 Hz
Controllable 3-On/Off I Phase I DALI I DMX mm
Color Temperature (CCT) 2700k ǀ 3000K ǀ 4000K ǀ 6000K
Luminous Flux 357lm @ 3000K
Color Rendering Index (CRI) DC 24V I AC 120V-277V
Input Frequency 50 I 60 Hz
Controllable 3-On/Off I Phase I DALI I DMX mm
Weather Resistant Yes (IP66)
Impact resistance Yes (IK06)
Ambient temperature Color Rendering Index (CRI) 131°F (55 °C)
Pole 11-13/16 in (300 mm)
23-5/8 in (600 mm)
35-7/16 in (900 mm)
Base Plate Dia: 2-15/16 in (75 mm)

Material SL Light
Diffuser Black
Width Dia: 1-3/8 in (35 mm)
Height 3-3/4 in (95 mm)
Depth 3-1/16 in (78 mm
Weight 2.43 lbs. (1.10 Kg)
Finishes
White (RAL9003)
Black (RAL9011)
Gray Silver (RAL9007)
Basalt Gray (RAL7012)
Moss Green (RAL6005)
Corten Brown (RAL8028)
Dark Brown (RAL8016)
Type of lamp LED
Power 3W
Input Voltage DC 24V I AC 120V-277V
Input Frequency 50 I 60 Hz
Controllable 3-On/Off I Phase I DALI I DMX mm
Color Temperature (CCT) 2700k ǀ 3000K ǀ 4000K ǀ 6000K
Luminous Flux 357lm @ 3000K
Color Rendering Index (CRI) DC 24V I AC 120V-277V
Input Frequency 50 I 60 Hz
Controllable 3-On/Off I Phase I DALI I DMX mm
Weather Resistant Yes (IP66)
Impact resistance Yes (IK06)
Ambient temperature Color Rendering Index (CRI) 131°F (55 °C)
Pole 11-13/16 in (300 mm)
23-5/8 in (600 mm)
35-7/16 in (900 mm)
Base Plate Dia: 2-15/16 in (75 mm)

Technical Data

Material SL Light
Diffuser Black
Width Dia: 1-3/8 in (35 mm)
Height 3-3/4 in (95 mm)
Depth 3-1/16 in (78 mm
Weight 2.43 lbs. (1.10 Kg)
Finishes
White (RAL9003)
Black (RAL9011)
Gray Silver (RAL9007)
Basalt Gray (RAL7012)
Moss Green (RAL6005)
Corten Brown (RAL8028)
Dark Brown (RAL8016)
Type of lamp LED
Power 3W
Input Voltage DC 24V I AC 120V-277V
Input Frequency 50 I 60 Hz
Controllable 3-On/Off I Phase I DALI I DMX mm
Color Temperature (CCT) 2700k ǀ 3000K ǀ 4000K ǀ 6000K
Luminous Flux 357lm @ 3000K
Color Rendering Index (CRI) DC 24V I AC 120V-277V
Input Frequency 50 I 60 Hz
Controllable 3-On/Off I Phase I DALI I DMX mm
Weather Resistant Yes (IP66)
Impact resistance Yes (IK06)
Ambient temperature Color Rendering Index (CRI) 131°F (55 °C)
Pole 11-13/16 in (300 mm)
23-5/8 in (600 mm)
35-7/16 in (900 mm)
Base Plate Dia: 2-15/16 in (75 mm)

Images Gallery






Material

Die Cast Aluminum
Diffuser

Clear Glass
